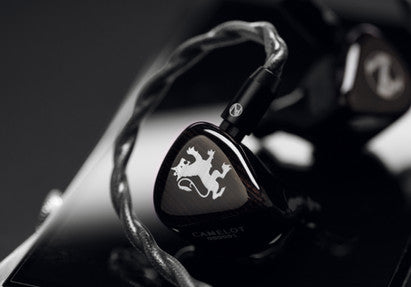

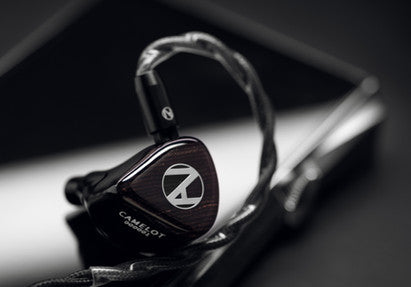

Camelot (Universal)
Camelot (Universal)
Couldn't load pickup availability
Camelot (universal)
AVAILABLE FROM OUR ONLINE STORE AND DEALER NETWORK
Technical Specifications
4 Balanced Armature Drivers - 2 Mid, 2 High
4 Electrostatic Drivers - 4 Ultra-High
5-Way Crossover Design
Extreme Bass System
Spiral Flow Device
Impedance: 13 Ohms @ 1kHz
Frequency Response: 15 Hz - 40kHz
Sensitivity: 114dB @ 1kHz, 1mW
Bespoke Avalon High Purity OFC and OCC Copper Cable, Multiple Strand Design

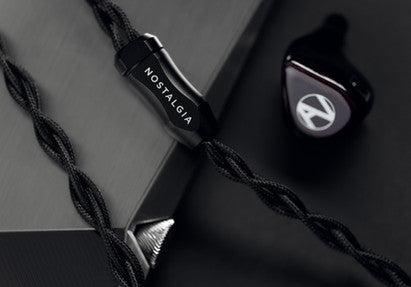

Avalon
Avalon is a legendary island featured in the Arthurian legend, the place where King Arthur's sword Excalibur was forged and later where Arthur was taken to recover from being gravely wounded at the Battle of Camlann. Similar to Camelot, Avalon is also a symbol of the Arthurian legend.
Camelot, as our latest flagship IEM, utilizing the best IEM drivers and technologies, provides an extraordinary and legendary sound, hence we decided to forge an extraordinary cable especially for Camelot. Introducing Avalon, a supreme handcrafted 4 strands cable composed of High Purity OFC and OCC Copper in Multiple strand configuration, protected with black nylon sleeve, and equipped with our latest rhodium plated 4.4 mm balanced termination. We believe that Camelot and Avalon will bring you a stunning impression of sound experience.
CABLE SPECIFICATION
4 Strands 22 AWG High Purity OFC and OCC copper
Multiple strand design
Customized flexible nylon wrapping
Rhodium plated high quality 4.4 mm balanced termination
FEATURING
Dynamic drivers
Our self-designed 10mm Dynamic Drivers are constructed with N52 Neodymium Magnet and a PEN diaphragm. Polyethylene Naphthalate, one of the ester functional groups of polyester, is easy to drive and provide a quick and deep bass with stunning performance.
Balanced Armature drivers
Camelot uses four individual Balanced armature drivers on mid and high frequencies, our SFD system is designed to reduce losses from the tube curvature, presenting a smooth, sweet vocal also detailed highs and extensions.
Electrostatic drivers
We used four second generation electrostatic drivers in Camelot. A voltage transformer has been installed into the iem so the EST driver doesn’t need to have an external power to driver the unit. EST drivers provide detailed highs and airy sounding, also performing an airy sounding.
Technology
XBS - Extreme Bass System
Consisting of two 10mm PEN Dynamic Drivers and a brass made chamber, the brass made chamber is used to reduce the Acoustic Resonance and provides less space usage and maximize the bass performance.
SFD - Spiral Flow Device
The SFD is specially designed for enhancing the mids performance in Camelot. A helical formation incorporated as a ridge serves to induce a spiral pattern of flow, reducing loss caused by the curvature of the nozzle.
Fully 3D Print Design
Camelot is our first fully 3D print design IEM. Not only the shell, we designed a 3D printed internal chamber for all those drivers to minimize the size and provide more referencing sound. Furthermore, a hidden venting design has been used on Camelot, a customized cm plug with vent holes in order to solve the air pressure from the two Dynamic drivers.
Story of Camelot
Camelot comes from one of the greatest mythology in Britannia, the legendary King Arthur. King Arthur was a legendary King who led the defense of Britain against Saxon invaders in 5-6 centuries. There are so many romantic and magnificent stories about him, such as the sword Excalibur, his most trusted subordinate The knights of the Round-Table, and also The Holy Grail that was written on the Matter of Britain. Camelot is The castle where King Arthur lived and also the place where the round-table is located.
Packaging
Camelot Custom In-Ear Monitors
Avalon High Purity copper Cable

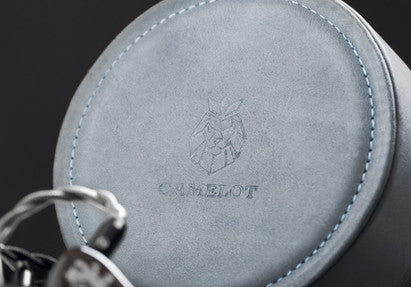

Camelot hand-crafted leather case
Dekoni Washable Memory Foam
Symbio W Memory Foam & Silicone Hybrid Ear Tips - S, M, L
